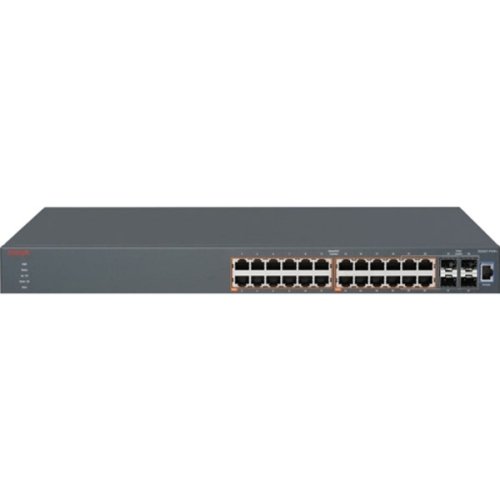

Avaya 3500 3524GT-PWR+ 24-Port Gigabit PoE

Description

Item Description

• Model: Avaya Ethernet Routing Switch 3524GT‑PWR+
  Part Number: AL3500A15‑E6
  Series: ERS 3500
  Type: Managed Layer 3 Gigabit Ethernet switch with PoE+
  Form Factor: 1U rack‑mountable (desktop or wall mount capable)
  Management: CLI (serial/SSH/telnet), Web GUI, SNMP v1/v2/v3
• 🧱 Ports & Connectivity
• 24 × 10/100/1000 Mbps RJ‑45 ports (PoE+)
  4 × shared SFP ports (combo with ports 21–24)
  2 × rear SFP ports
  1 × RJ‑45 serial console port
  Stacking: Supports up to 8 units in a stack
• ⚡ Power over Ethernet (PoE)
• PoE+ support: IEEE 802.3af & IEEE 802.3at
  Maximum PoE Budget: 370 W total power for PoE/PoE+ devices
• 🧠 Performance & Hardware
• Switching Capacity: 52 Gbps
  Forwarding Rate: 38.7 Mpps
  Processor: ~400 MHz network processor
  Memory: 128 MB DRAM
  Flash Storage: 32 MB
  MTBF (Mean Time Between Failures): ~336,357 hours
• 📈 Use Case
• Ideal for enterprise/branch networks, especially where:
  PoE+ powered devices are needed (VoIP phones, APs, cameras)
  VLAN segmentation and basic L3 routing are required
  Managed features (QoS, ACLs, SNMP) are needed for traffic control
