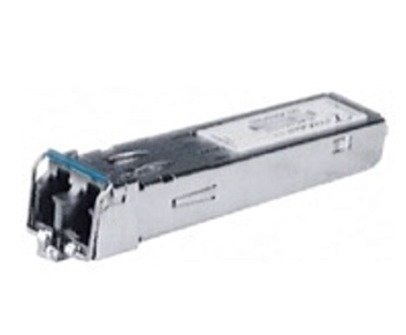

Hirschmann, SFP Fiberoptic Fast-Ethernet Transceiver MM

Network Size – Length of Cable

• Multimode fiber (MM) 50/125 µm: 0 – 5000 m 0 – 8 dB link budget bei 1310 nm A = 1 dB/km, 3 dB Reserve, B = 800 MHz x km
• Multimode fiber (MM) 62.5/125 µm: 0 – 4000 m 0 – 11 dB link budget bei 1310 nm A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km

Power Requirements

• Operating voltage: Power supply via the switch
• Power Consumption: 1 W

Service

• Diagnostics: Optical input- and output power, transceiver temperature

Ambient Conditions

• Operating temperature: 0 C to 60 C
• Storage temperature: -40 C to 80 C
• Relative humidity: 10% to 95%
• MTBF: 514 years; Telcordia SR-332

Mechanical Construction

• Dimensions: 20 mm x 18 mm x 50 mm
• Mounting: SFP Slot
• Weight: 40 g
• Protection Class: IP 20

Mechanical Stability

• IEC 60068-2-27 shock: 15 g, 11 ms duration 18 shocks
• IEC 60068-2-6 vibration: 1 mm, 2 Hz – 13,2 Hz, 90 min.; 0.7 g, 13.2 Hz – 100 Hz, 90 min.; 3.5 mm, 3 Hz – 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz – 150 Hz, 10 cycles, 1 octave/min.

EMC Interference Immunity

• EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge
• EN 61000-4-3 electromagnetic field: 10 V/m (80 – 1000 MHz)
• EN 61000-4-4 fast transients (burst): 2 kV power line, 1 kV data line
• EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
• EN 61000-4-6 conducted immunity: 3 V (10 kHz – 150 kHz), 10 V (150 kHz – 80 MHz)

EMC Emitted Immunity

• FCC CFR47 Part 15: FCC CFR47 Part 15 Class A
• EN 55022: EN 55022 Class A

Approvals

• Shipbuilding: Germanischer Lloyd
