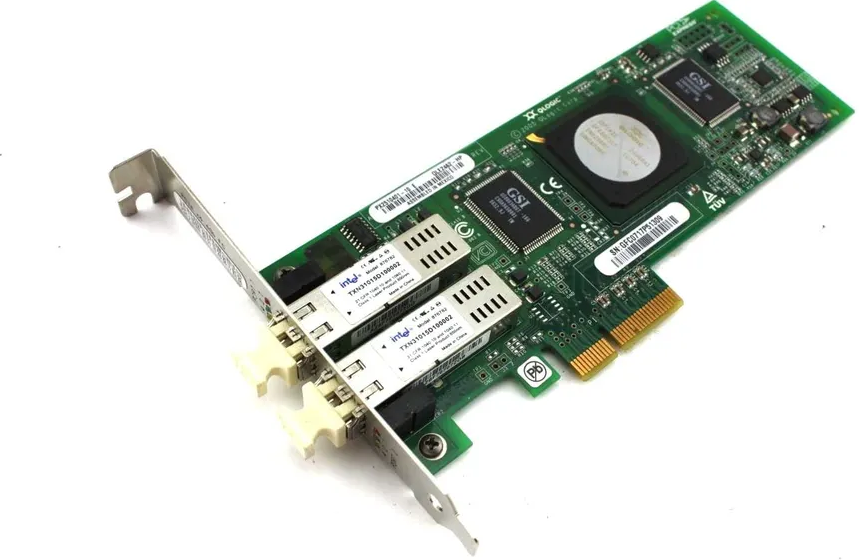

HP QLogic QLE2462 Server Fiber Channel PCIe AE312-60001

Description

Specifications:

Manufacturer: HP / QLogic

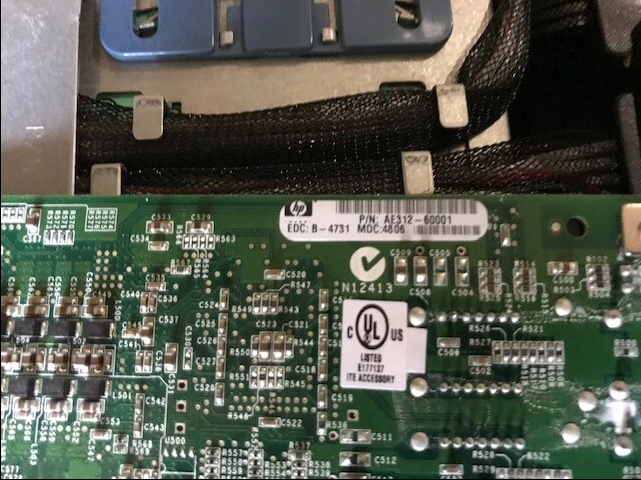

HP Part Number: AE312-60001
Model: QLE2462
Type: Fibre Channel HBA
Ports: 2 × Fibre Channel
Maximum Speed: 4 Gb/s per port
Supported Speeds: 1 / 2 / 4 Gb/s, auto-negotiating
Interface: PCI Express x4
Connector: 2 × LC
Fiber Type: Multimode fiber
Form Factor: Low-profile PCIe
IOPS: Up to 150,000 IOPS per port
Power Consumption: Max. 6.5 W
Topology: Point-to-point, arbitrated loop, switched fabric
Protocols: FCP, FC-IP, FC-TAPE
Operating Temperature: 0–55°C
Storage Temperature: -20–70°C
